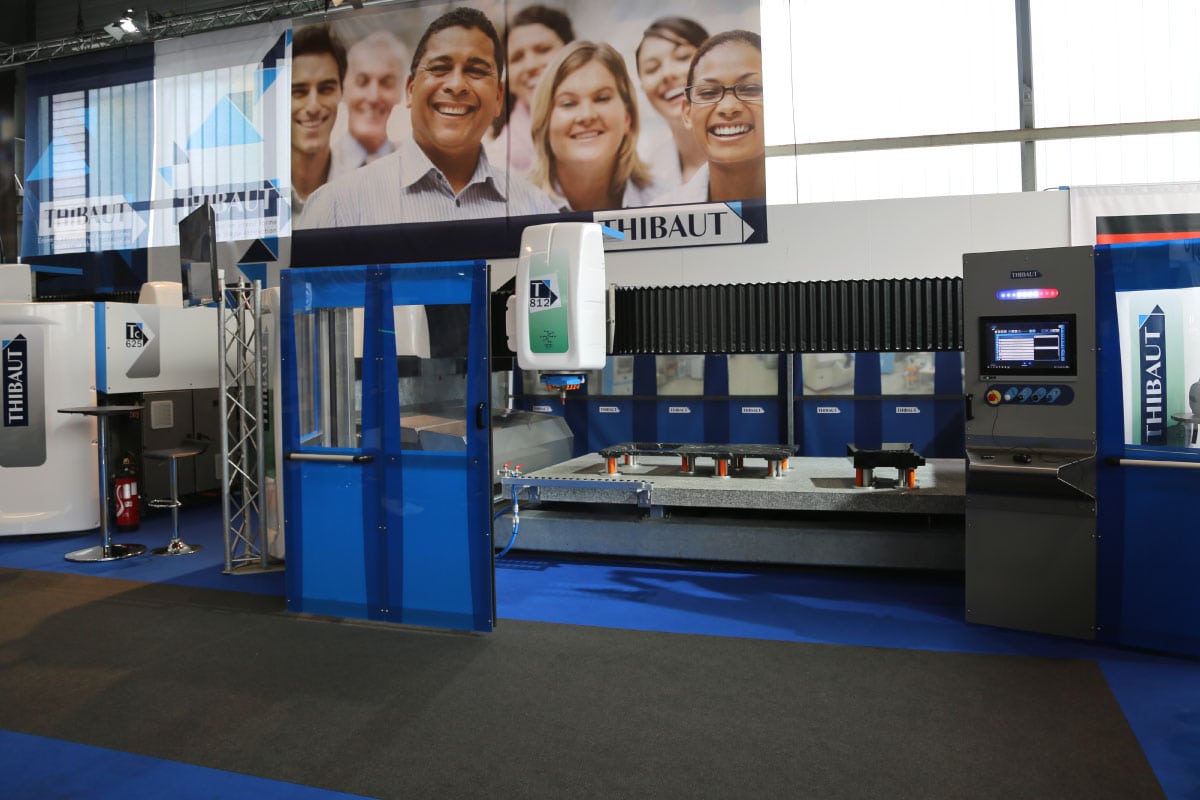

Are you ready for the new Thibaut CNC router T812 V5? Faster, stronger and easier to use. A machine with no compromise! Proven reliability and tremendous support from Thibaut North America!
X stroke : 4140 mm, 163"
Y stroke : 1600 mm, 63"
Z stroke : 500 mm, 19.7"
Spindle power : 16.2 kW (S6), 21.75 hp (S6)
Spindle speed : 0 - 10000
Tools : 31 maxi (BT40)
Air supply : 12 m3/h > 6 bar, 423 ft3/h > 87 PSI
Power supply : 21 kW / 28,5 hp , 400 - 480 V , 50 - 60 Hz
Lubrication : Centralized & automatic
External watering : 40 l/mn, 10.5 gal(US)/mn
Table dimensions : L : 3375 x 1500 mm, 132.9 x 59", XL : 3375 x 1900 mm, 132.9 x 74.8"
All-in dimensions : L : 6380 x 3940 x 2650 mm, 251.2 x 155.1 x 104.3", XL : 6380 x 4090 x 2650 mm, 251.2 x 161 x 104.3 "
Weight : L : 6750 kg, XL : 7100 kg
Please let us know if you have a question, want to leave a comment, or would like further information.
