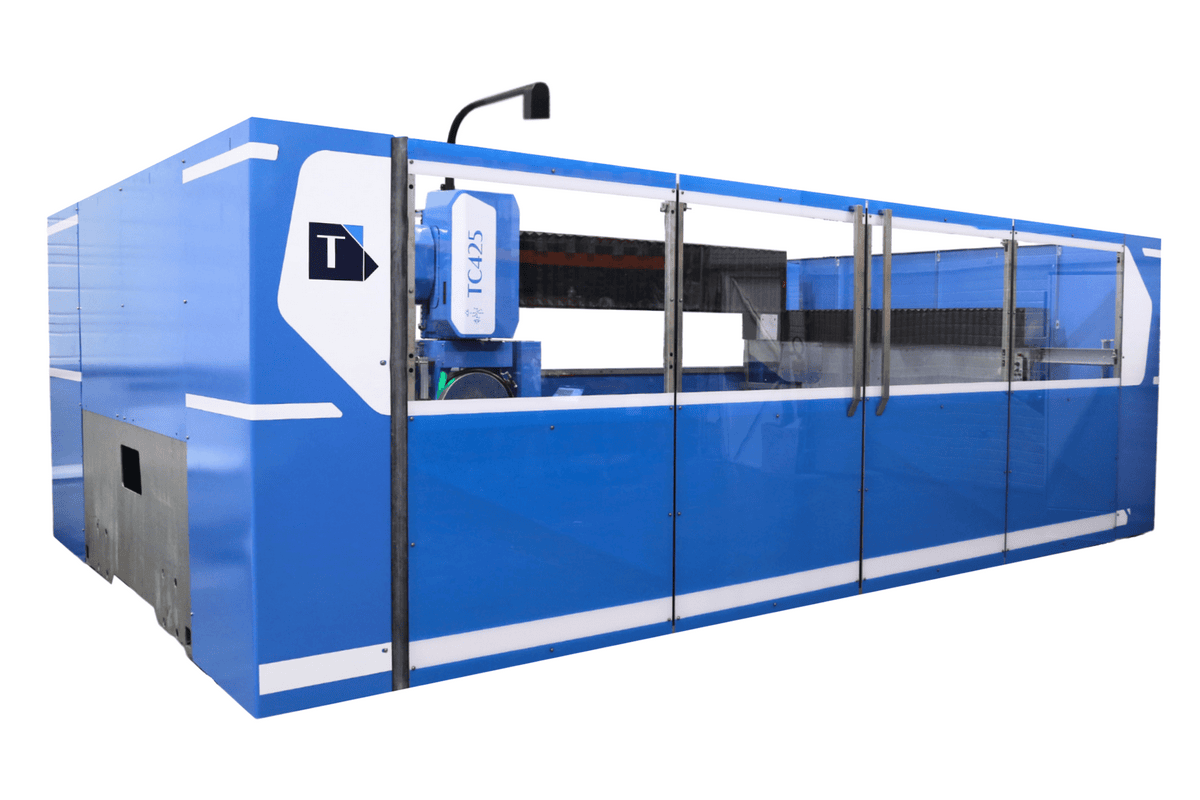

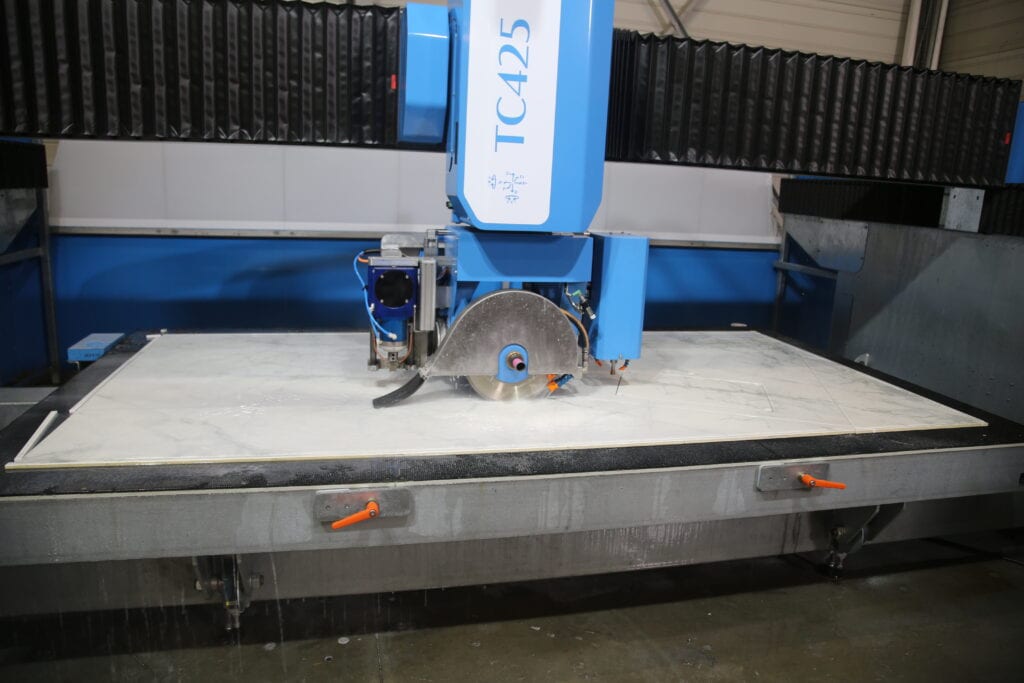

TC425

5-axis Monobloc CNC Saw

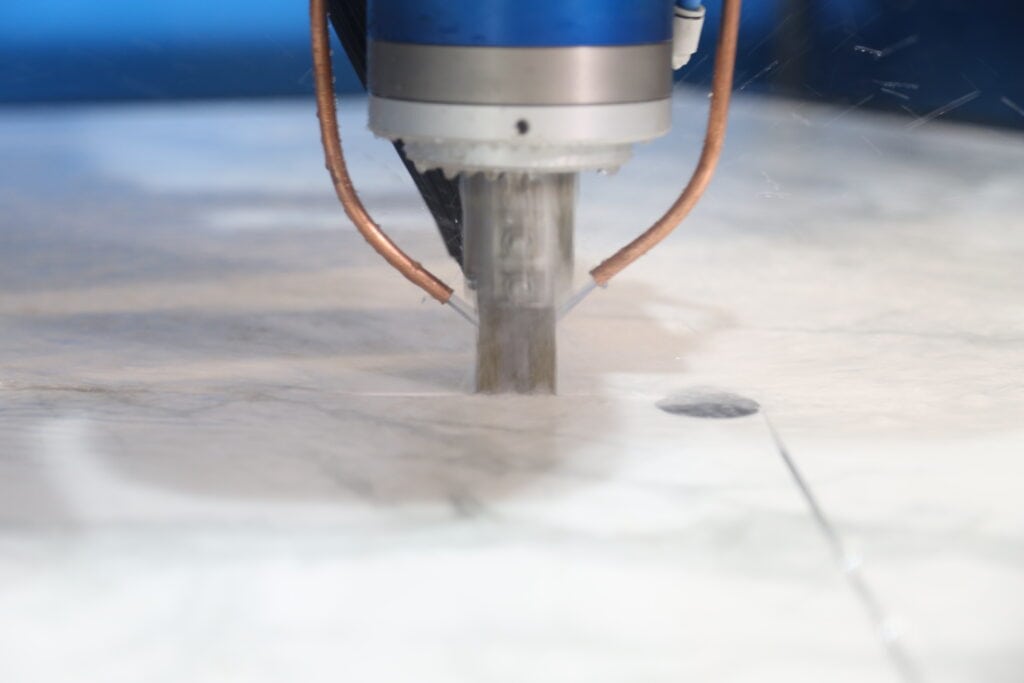

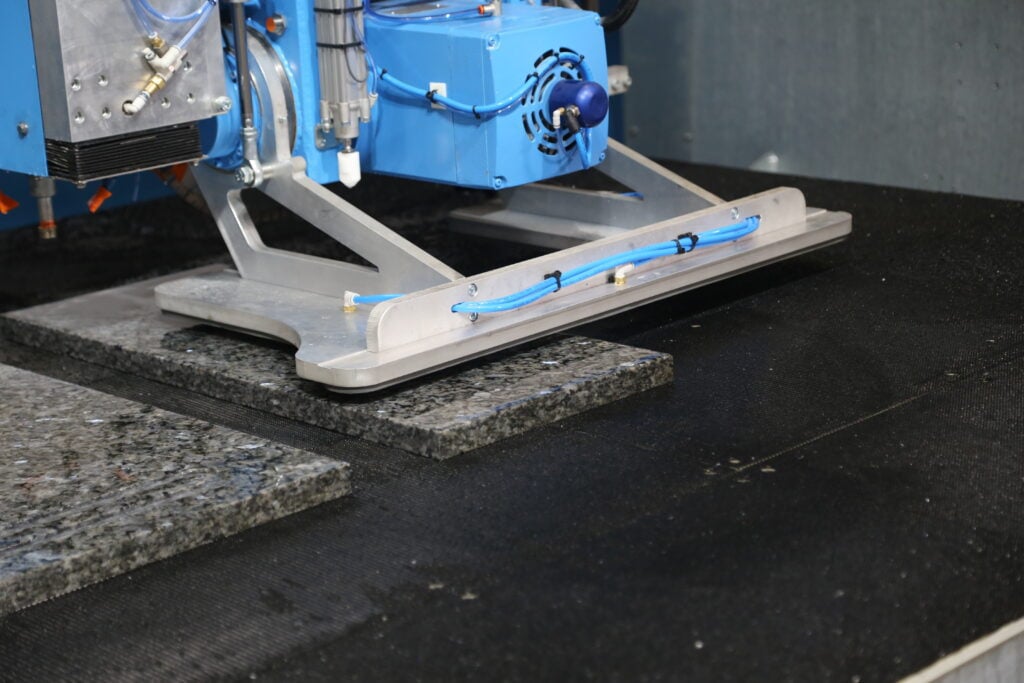

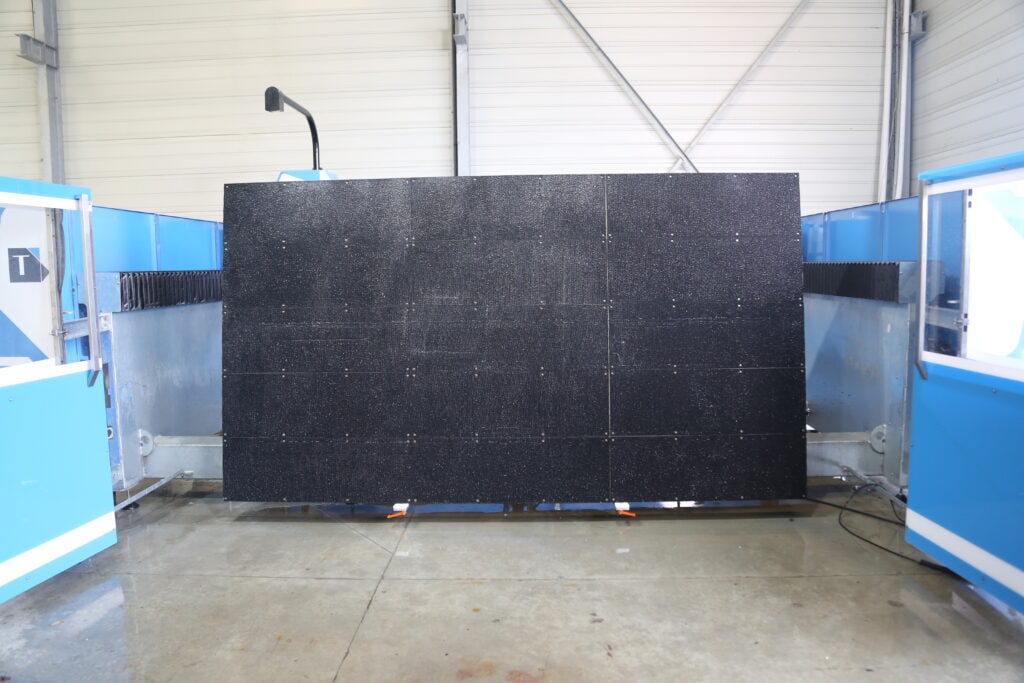

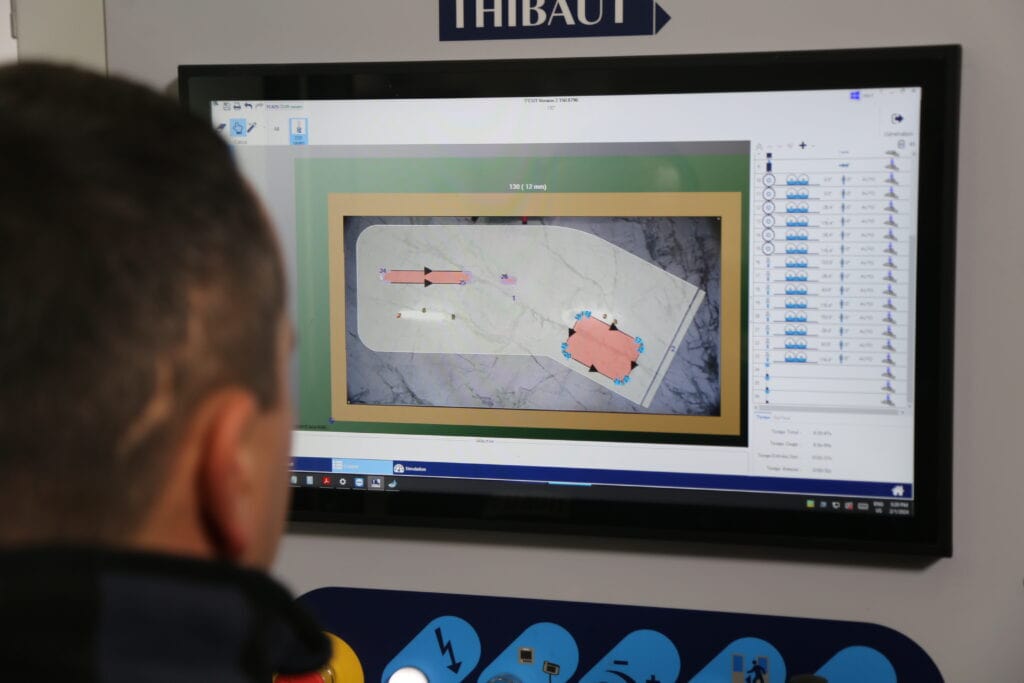

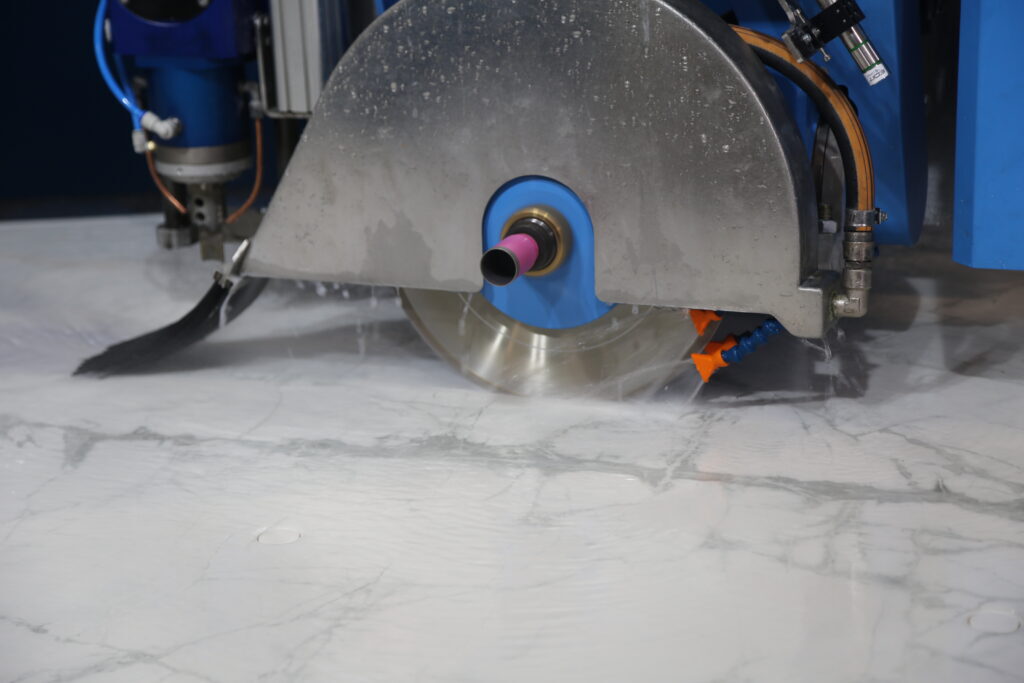

The new TC425 is the perfect match for countertop fabricators. Flexibility, monobloc structure, unmatched quality, reliability and innovation in a cost-effective package! With the fastest milling capability of its category, the maintenance-free rubber tilting table, the innovative jigsaw (ACS) unit, optional incremental unit, optional vacuum system, optional camera and our brand new operating system (Pilot) for faster and easier online support, it is a must to consider this next-generation 5 axis CNC saw.

Faster
Stronger
Better
Specifications
Dimensions
Specifications

Minimum disc diameter : 300 mm, 11.8"

Maximum disc diameter : 450 mm, 17.7"

Bore diameter : 50 mm, 2.4"

Flange diameter : 187 mm, 7.4"

X stroke : 3750 mm, 147.6"

Y stroke : 2300 mm, 90.5"

Z stroke : 300 mm, 11.8"

Maximum thickness : 120 mm, 4.7"

Spindle power : 13.2 kW (S6)

Spindle speed : 0 - 6000

Water supply : 60 l/min, 15.9 gal (US)/min

Air supply : 200 l/min > 6 bars mini, 53 gal (US)/min > 87 PSI

Power supply : 28.5 kW / 37.5 hp, 400 - 480 V, 50 - 60 Hz

Dimensions

Table dimensions : 3600 x 2000 mm, 141.7 x 78.7"

All-in dimensions : 5770 x 4000 x 2460 mm, 227.2 x 157.5 x 96.9"

Weight : 4500 kg
