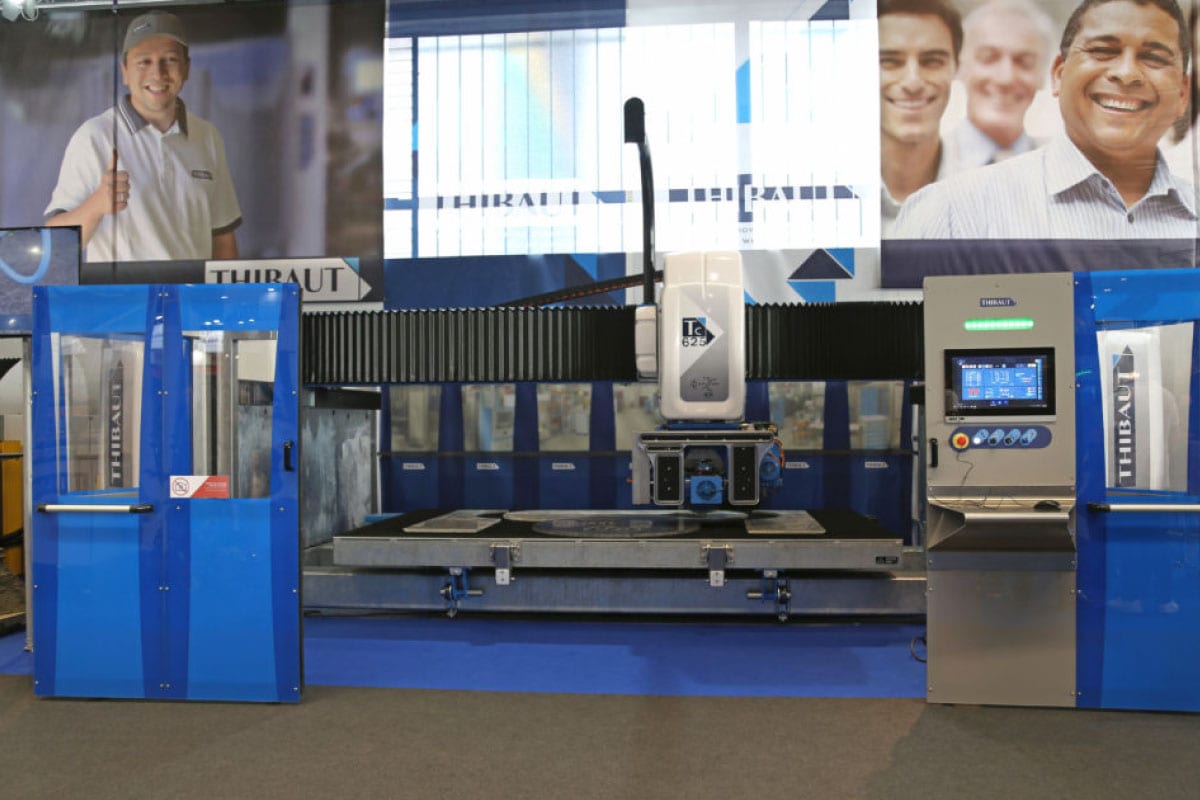

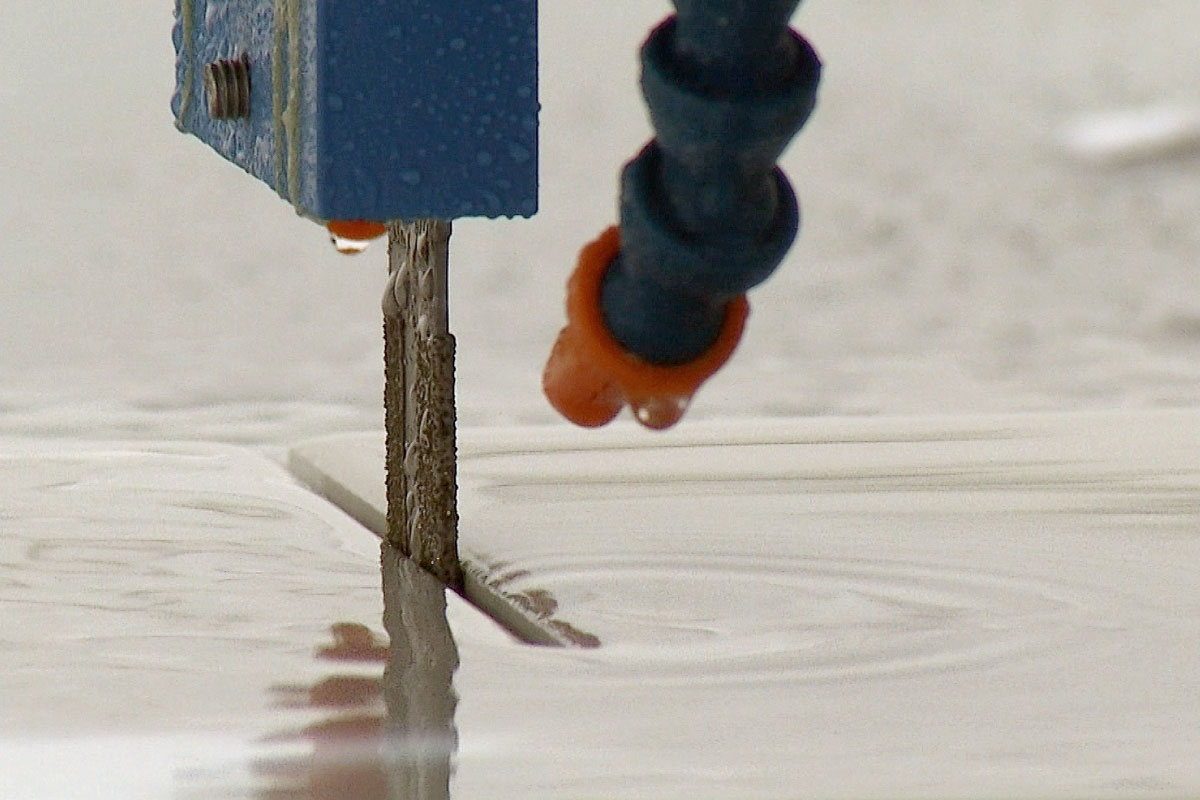

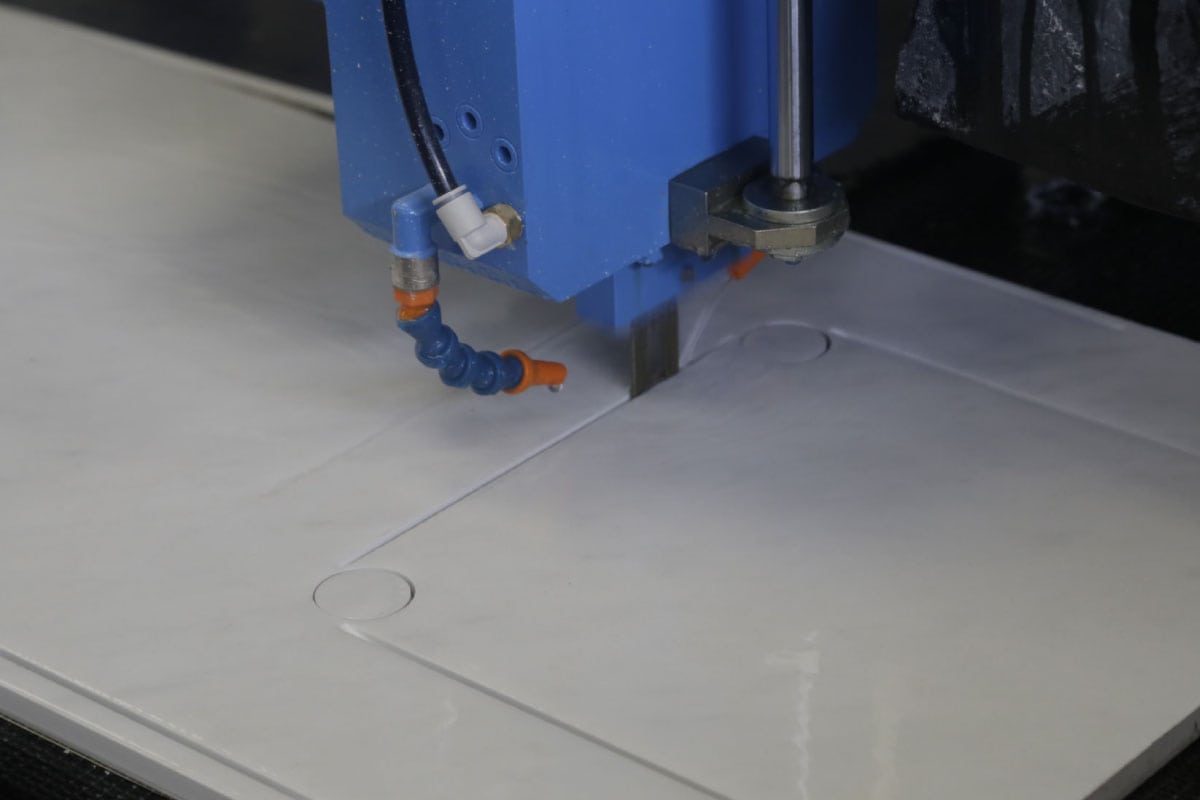

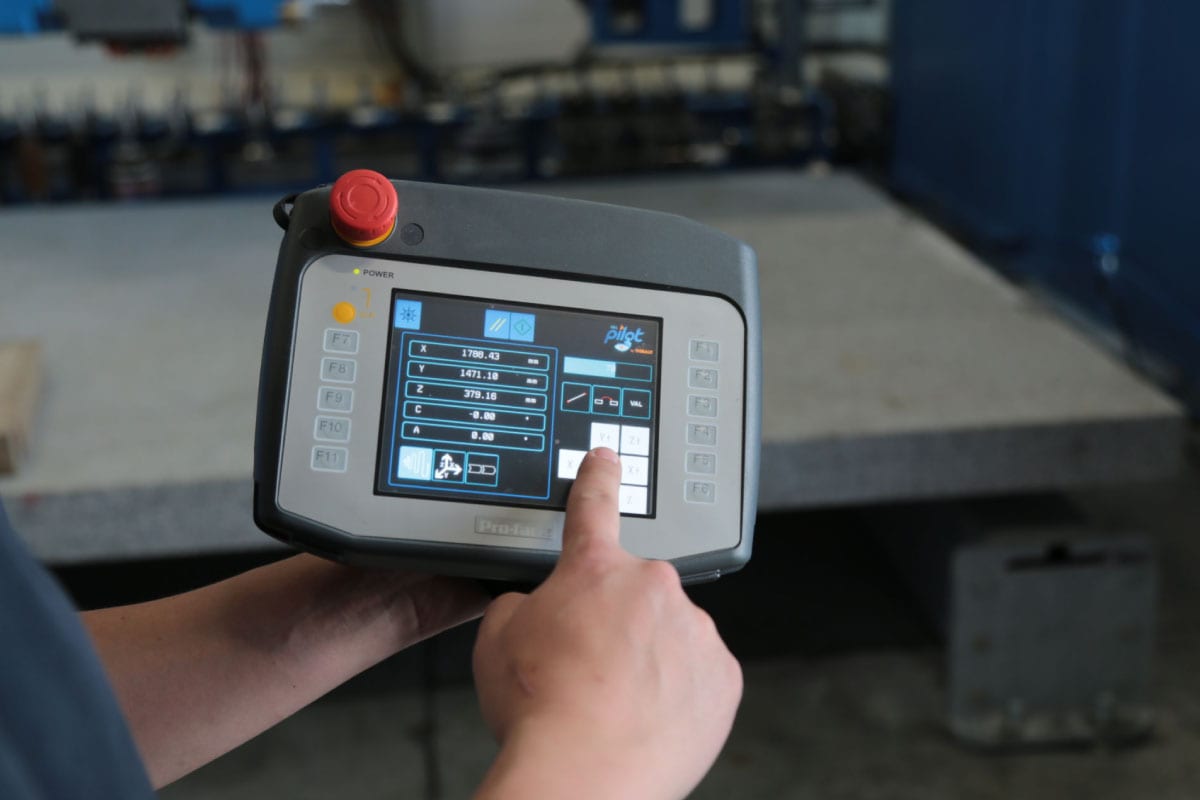

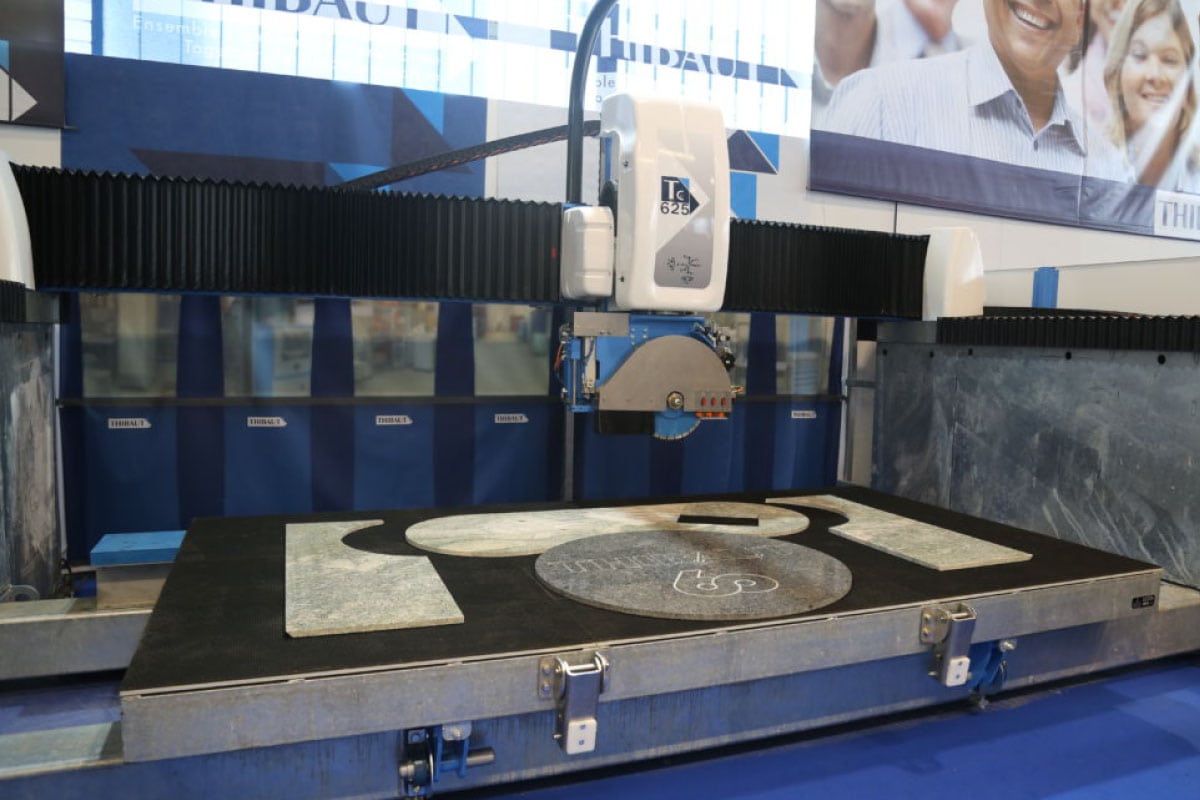

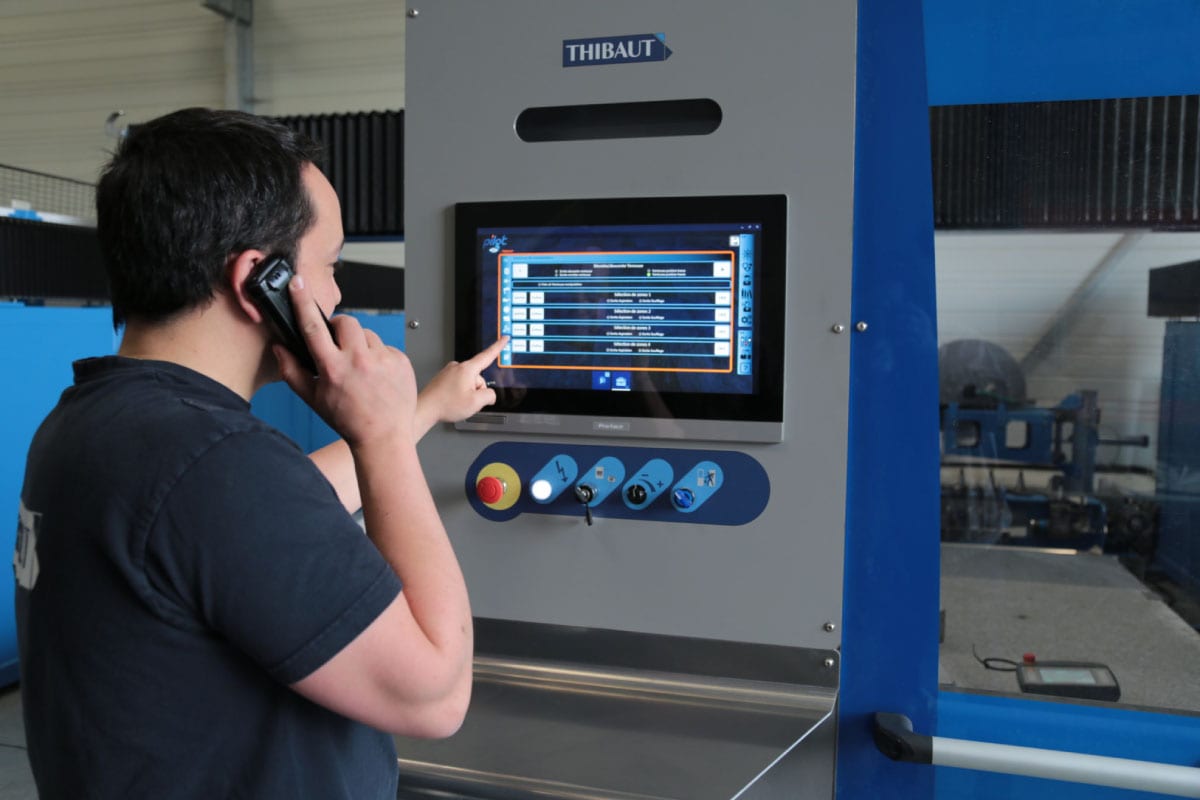

The TC625 is the answer to countertops fabricators needs. The heavy monobloc structure combined with unmatched quality, reliability and innovation will help you reach your highest goals! With the fastest milling capability, the maintenance-free rubber table, the innovative jigsaw (ACS) unit and our brand new operating system (Pilot) for faster and easier online support, it is a must to consider this 5 axis CNC saw when you will buy one.
Minimum disc diameter : 300 mm, 11.8"
Maximum disc diameter : 650 mm, 25.6"
Bore diameter : 60 mm, 2.36"
Flange diameter : 187 mm, 7.36"
X stroke : 3970 mm, 156.3"
Y stroke : 2300 / 3700 mm, 90.55 / 145.6"
Z stroke : 500 mm, 19.6"
Maximum thickness : 200 mm, 8"
Spindle power : 13.2 kW (S6), 17.4 hp (S6), 88 Nm, 779 lbf.in
Spindle speed : 0 - 6000
Water supply : 25 l/min, 6.6 gal (US)/min
Air supply : 200 l/min > 6 bars mini, 53 gal (US)/min > 87 PSI
Power supply : 28.5 kW / 37.5 hp, 400 - 480 V, 50 - 60 Hz

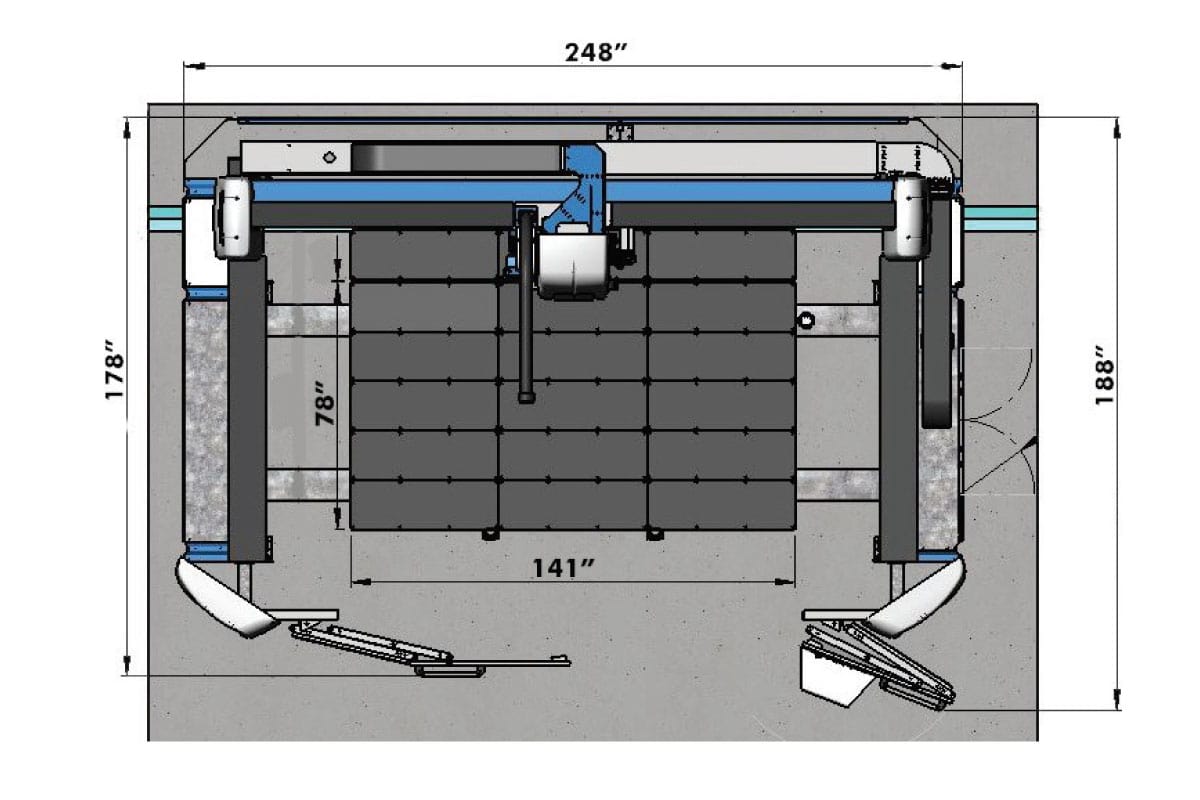

Table dimensions : 3600 x 2000 mm, 141.7 x 78.7"
All-in dimensions : 6310 x 4770 x 3260 mm, 248.5 x 187.8 x 128.3"
Weight : 7700 kg
