REVOLUTIONARY SYSTEM

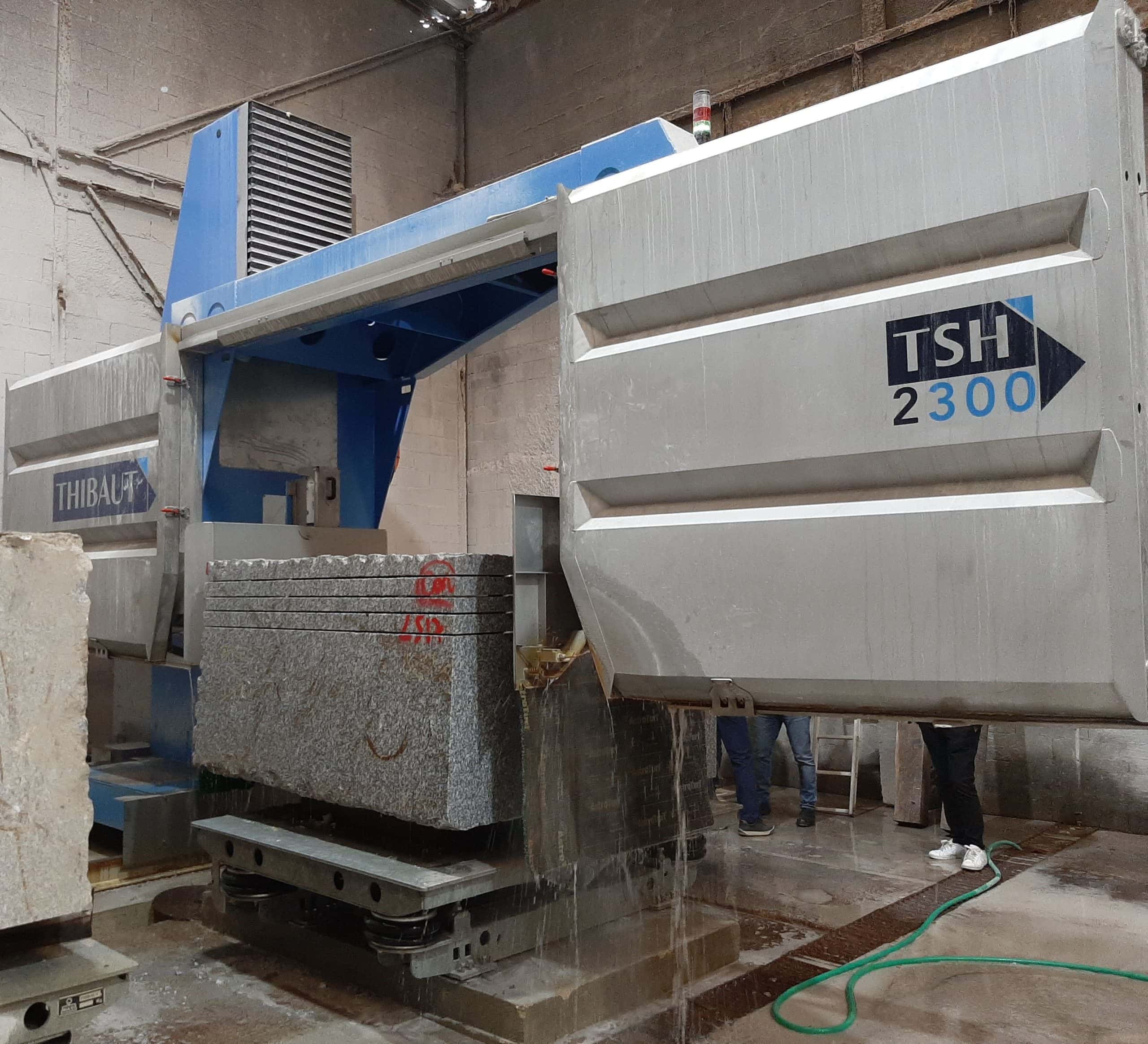

The TSH revolutionizes primary sawing by cutting blocks horizontally with automatic wedge insertion.
This concept allow to cut up to 16 blocks on 40 m of track without handling.
The quality and great accuracy of the cut guaranty a much shorter polishing process.
HIGH PRODUCTIVITY
The automatic wedge insertion system allow significant productivity gains.
Less preparation time, safer unloading operation, better yield and longer wire life time are some of the great advantages of the TSH2300.
On top of it, it's 15% to 80% faster than the previous generation.
X stroke : 1250mm
Y stroke : 6m to 41m
Z stroke : 2050mm
Maximum thickness : 1600mm
Spindle power : 15 kW
Lubrication : Automatique
Wedges : Max. 150 / magazine
Programming : Up to 16 blocks
Cable speed : 21 x 45 m/s, 68.9 x 147.6 ‘/s
Cable tensioning : Pneumatique
Cable length : 15.85m, 52'
Ø Cable : 8.3mm, 0.33"
Z axis displacement speed : 0.01 to 7 m/min, 0.39 to 23'/min
Displacement speed of the gantry : 0.01 to 15 m/min, 0.01 to 49.21'/min
Width capacity : 500 to 2300 mm, 19.69'' to 90.55''
Vertical capacity : 1600 to 2000 mm, 63'' to 78.7"
All-in dimensions : 13 900 x 11 700 x 5500 mm, 547.24 x 40.62 x 216.54"
Weight : 10600 kg
